Product · VisionAgent

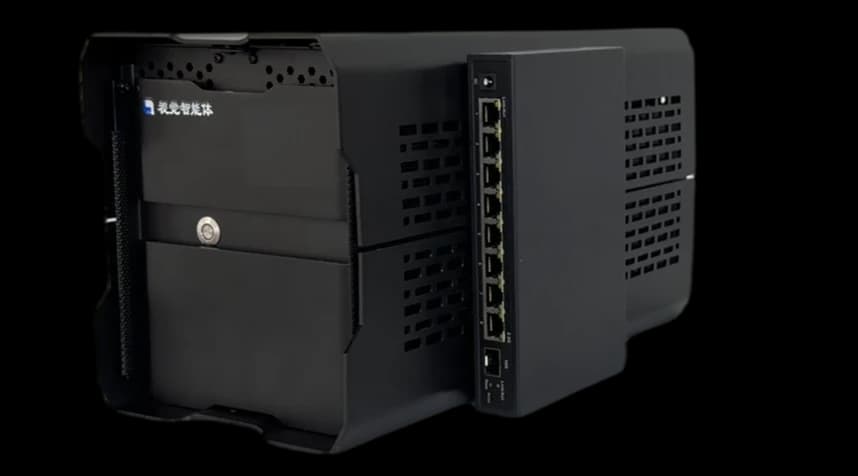

Edge Agent
For line integrationDeployed at the line edge, one agent reaches horizontally across multiple lines and vertically across the stations of a single line at the same time, running mixed tasks in parallel, with inference and training entirely on site.
Technical specifications
Performance, software and hardware
Performance
- Inference speed
- 200+ fps · peak 250 fps @ 700 × 700
- Per-frame inference
- 4 ms @ 700 × 700
- Minimum detectable size
- 6 × 6 px
- Few-shot modeling
- 1–5 images · fine-tuned on site
- Training time
- < 0.5 hours for up to 100 images
Software
- Applications
- Process monitoring · assembly inspection · defect detection
- Platform software
- VisionAgent 3.0
- Operator orchestration
- Zero-code drag-and-drop canvas
- Compute architecture
- Tensor-stream execution
- Operator library
- Camera · model · event detection · state machine · output · OCR
- Camera operators
- Area-scan camera · line-scan camera · HTTP camera · video stream · local image file
- Model operators
- Image preprocessing · semantic segmentation model
- Event detection operators
- OR · AND · NOT · count · size · color · angle · width · speed · timing · object present · object absent · binarization
- State machine operators
- Visual orchestration · sequenced standard operating flows
- Output operators
- Modbus · TCP/IP · RS232/RS485 serial · HTTP · MQTT
- Model foundation
- Vision inspection model
- Line integration
- MES / SCADA / PLC
- Operation
- Inference and training fully on premises
- Software updates
- Remote OTA · dedicated 4G link · never joins the plant network
Hardware
- Model
- LBZN-VA-4090
- Processor
- Xeon
- Motherboard
- ASRock
- Memory
- 2 × 16 GB · up to 64 GB optional
- Storage
- 1 TB NVMe SSD
- GPU
- 4090
- GPU memory
- 24 GB
- Inference platform
- NVIDIA · Huawei Ascend

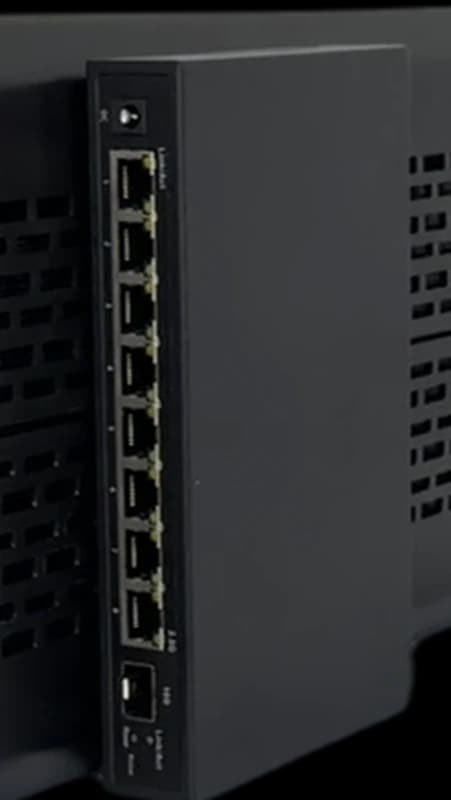

- Network
- 2 × 10 GbE optical
- Dimensions
- 37 × 18 × 21 cm
- Weight
- 6 kg
- Power consumption
- 600 W
- Power input
- AC 220 V · 50 Hz

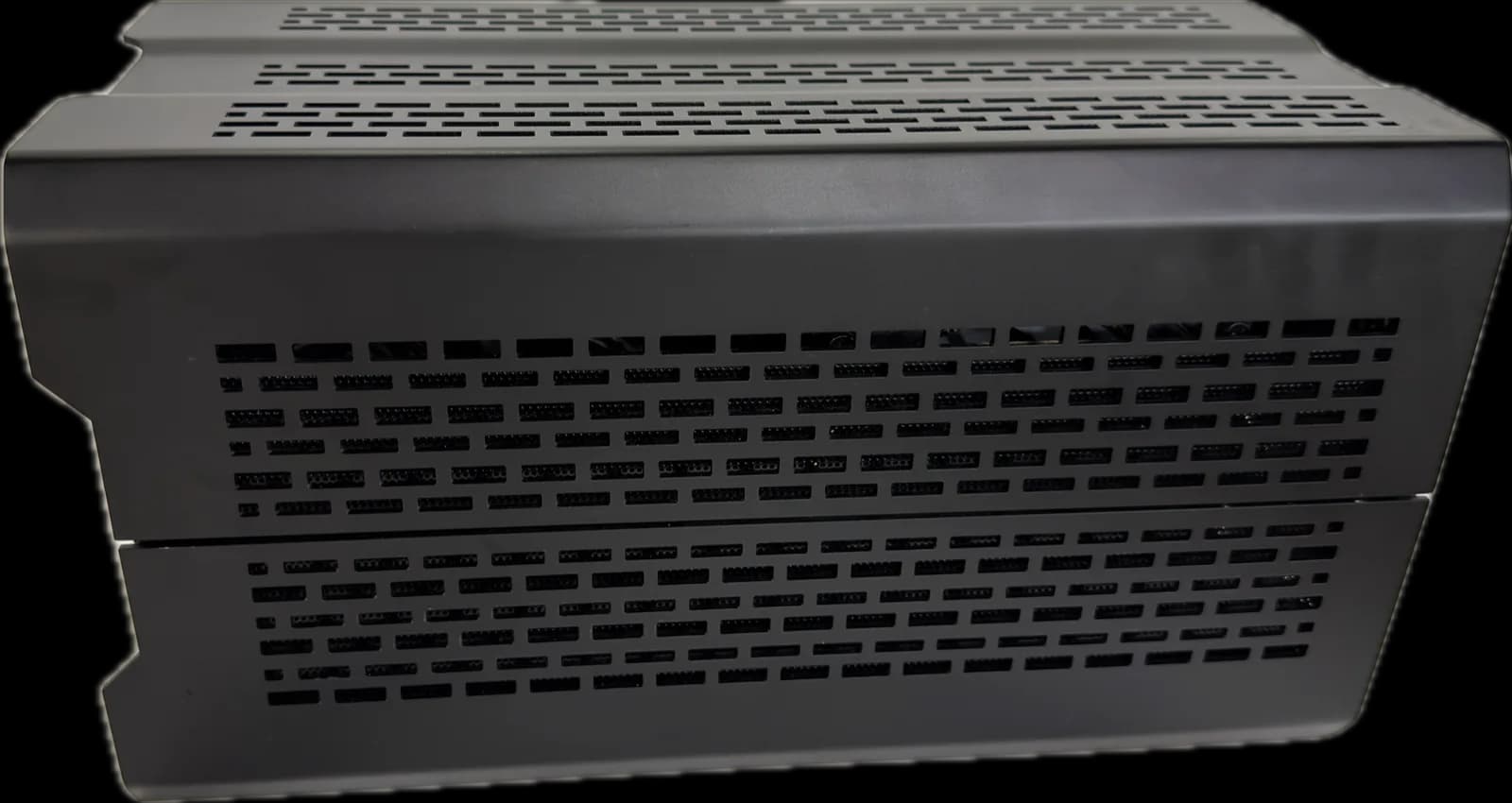

- Cooling
- Air cooling
- Dust protection
- Quick-release dust filter

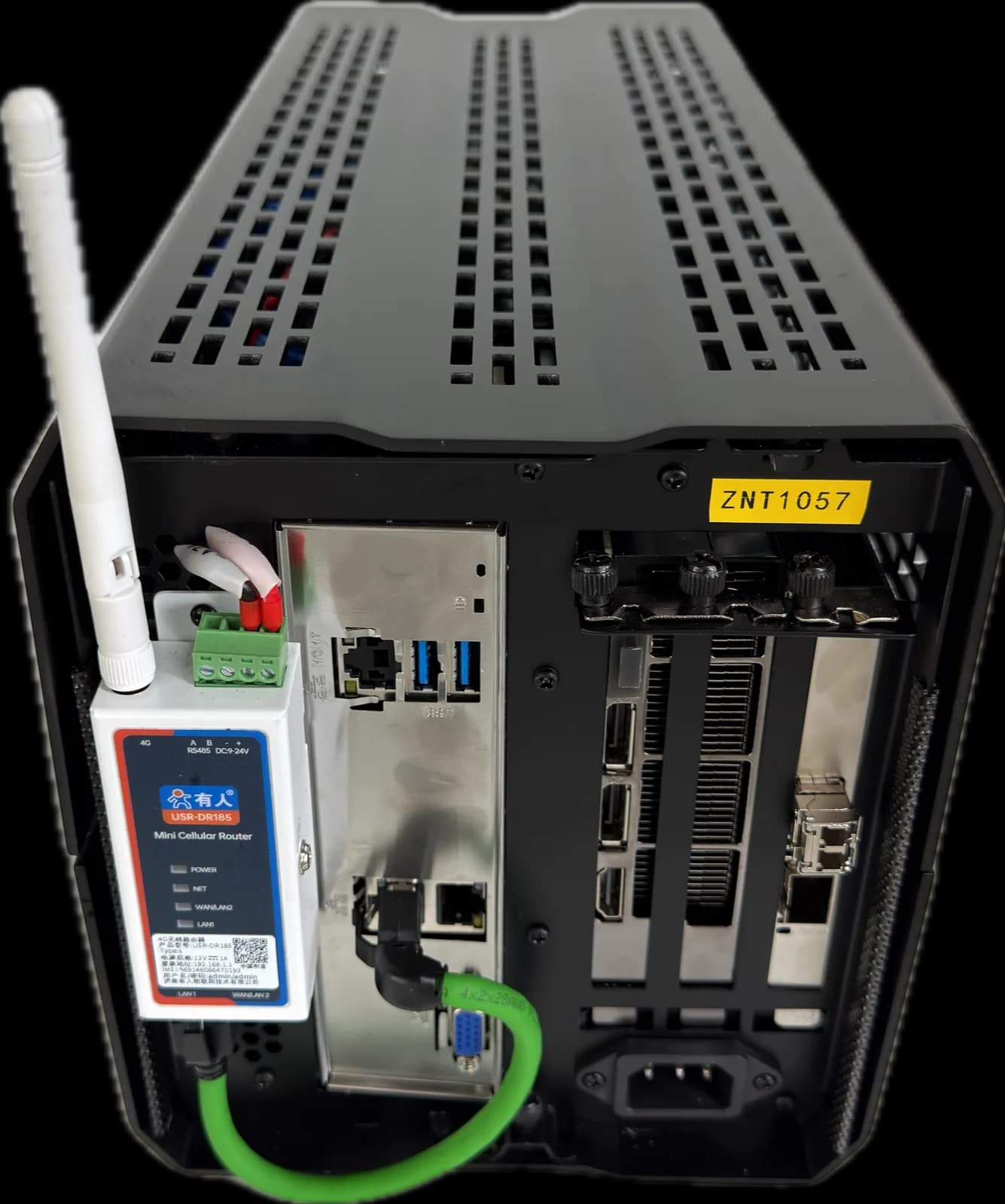

- Communication module
- Dedicated 4G link · never joins the plant network · used only for software updates
- Operating environment
- General industrial site
- Operating temperature
- 0–50 °C
- Operating humidity
- 10–90% RH · non-condensing
- Storage temperature
- −20–60 °C
Typical use
How it is usually used
1
Horizontal one-to-many — several lines share one unit
2
Vertical one-to-many — several stations on one line share one unit
3
Both directions at once — one unit spans lines and stations alike, mixed tasks in parallel
